The rolling shutter slat is composed of galvanize.

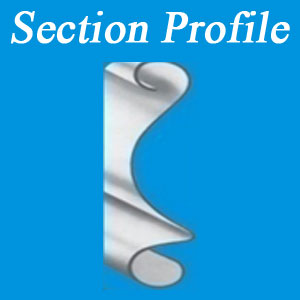

Cold rolled section which slide into one another across the full length. Each section hinges on the other and forming one whole piece for the required task.End clips or wind locks can be fitted on to the cross cut faces of the sections, preventing the section from moving in relation to one another. This also results in smooth and silent sliding along their lateral guides.

A number of sections are constructed so that the armoured structure can be rolled up in both direction i.e. backwards and forwards.Depending on the design of the section.

In the event of repairs the sections are easy to replace on a pieces by pieces basis.They are available in various dimentions, thickness and shapes.Flats or convex in steel or aluminum.

Surface Treatment

Aluminium curtain
Standard bright aluminium
On request-Anodized strips,colours coated according RAl shade card.
Steel Curtain-Galvanized or on request powder coating.

Rolling Shutter operating Option

Pull & push
Manually with gear box
Motorized and in an emergency manual operation option is available

Contral Components

Electrical control, these is a choice from a Customer

Simple push button
key switch
Remote
Option:-potocell,blinking lights, siron, radar, safety edge can be provided

Application

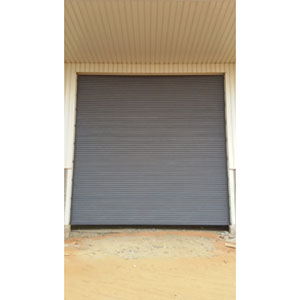

The Viewguard RR120 steel roller shutter is a robust access door, for building perimeter security or storage application. it is typically used in warehouses, factories ,distribution and transport facilities,stadiums,garges,plant rooms, remote buildings,hospital,council facilities, sports grounds and for security applications.

Featuers:

Curtain-constructed using 120*0.9mm/120*1.20mm Galvanized sheet .
Bottom plate-aluminum extruded with rubber gasket or M.S. sheet 3mm mounted with 35*35*5mm angle iron having both side locking system
Bracket plate-M.S sheet thickness and size from 3mm to 10mm of bracket plate depends upon the height/weight of rolling shutter.
Roller drum-fabricated from mild steel tube with the outer diameter and thickness appropriate to the size and application of the rolling shutter.
Door locking-shoot bolts are fitted internally to accept padlock for chain operated steel roller shutter only.
Hoods/Fascias-are available as optional extras to suit the application. Hoods are manufactured in house at Viewguard security from 0.9mm galvanized steel sheet
Finishes-Galvanized sheet items are left their raw form. Powder Coating is an optional extra.
Operation-either chain operated or electrically operated. Locking is not recommended for electrically operated steel rolling shutter.
Technical Information-RR120 solid steel profile/perforated profile.
Side Guides- MS side guides are supplied with brush seal inserted inside of both the wall of channel.
